Screen Walls Only Kit

Porch Screening System
Aluminium Screen Wall System

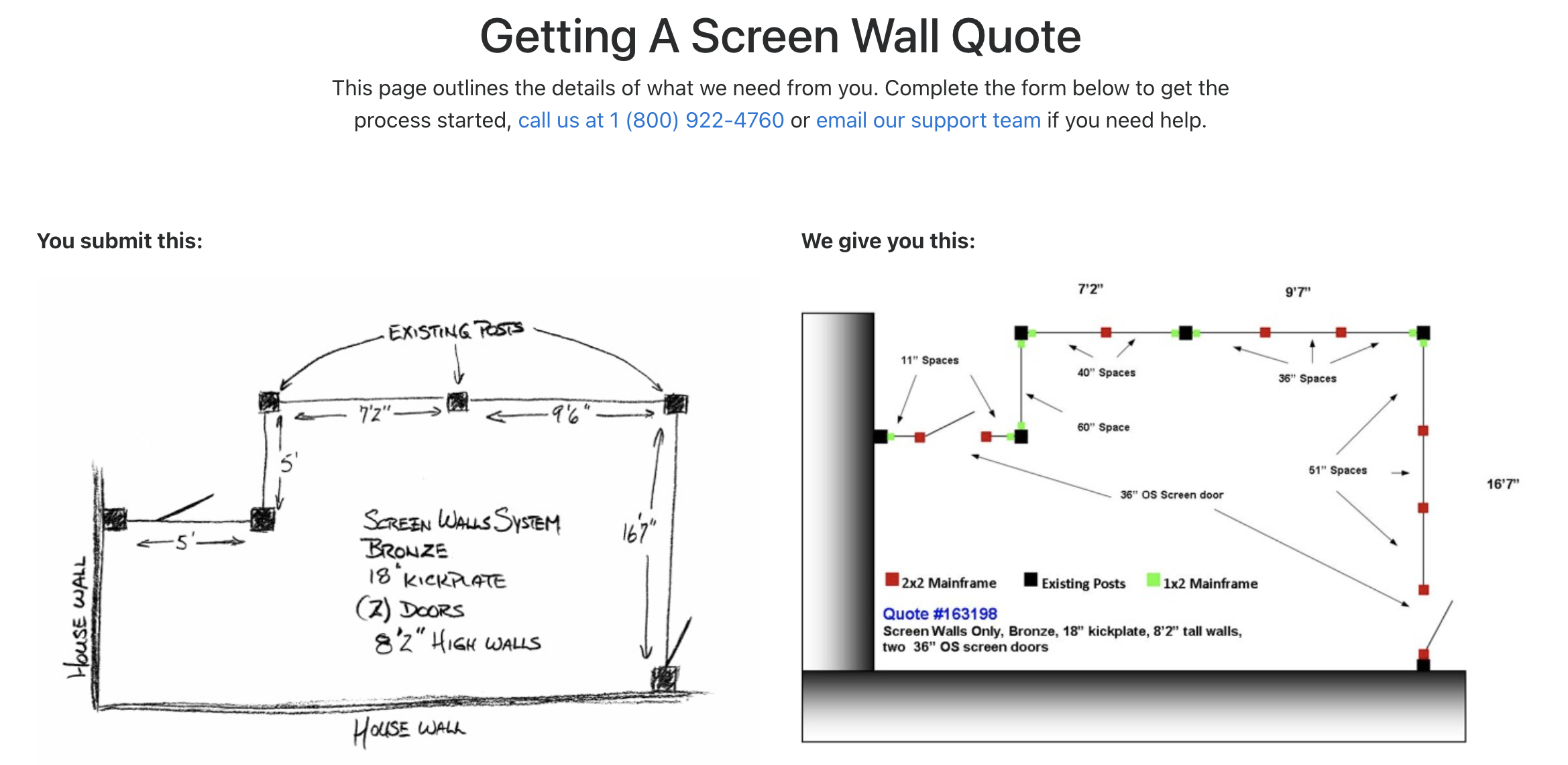

Everyone's porch is different.

Want to know what you need for your quotation?

See Quote details

These well designed do it yourself screened porch kits will help protect you from the West Nile Virus by helping you stay clear of that pesky mosquito. Take note of our lip frame clear vinyl window inserts to stop the winter snow from coming in to your newly screened area!

Do It Yourself Porch Screening Kits

The Canadian summer's are short enough without being kept indoors by mosquito's and black flies! Increase your outdoor living space using extruded aluminum framing and fiberglass screening that can stay up all year round. These porch screening kits are custom designed to fit your needs. High quality and durable, our screened wall kits come in a variety of frame colors.


Our Represented Manufacturers are: Mason Corp.

Proudly made in U.S.A. Prices are in CAN Dollars for delivery to CAN addresses

Screen Rooms - permanent and semi permanent installations

Features and Specifications

  • No obligation quotations!
  • Nation-wide factory to door delivery!
  • 3-4 week delivery times
  • Almost any size is possible
  • Over 16 years experience in helping you do it yourself!
  • Aluminum Frame Screen Systems
  • Toll Free help line: 1.800.922.4760
  • Shipment tracking
  • Over 16 years supplying contractors, government, commercial, HOA's and commercial corporations
  • Extruded aluminum framing!
  • Includes 18x16 mesh count screening
  • Choose from 3 different colours
  • Final dimension cut 'on site' by YOU!
  • Any number of screen doors possible!
  • Optional clear vinyl windows are available
  • Baked on enamel finish on all framing
  • Attaches to all existing roof lines!

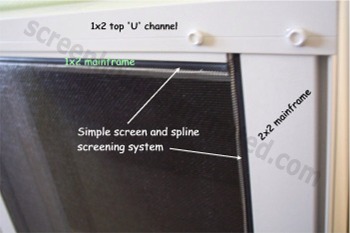

About our Extruded Aluminum Frame & Screening System

  1. This is a "materials supplied" screen room system designed to add beauty and functional 3 season living space to your home. To help you close in your existing roof line, you will receive 16' and 20' lengths of material. All material is extruded aluminum, and will be supplied in up to 4 different profiles depending on your application. You will be cutting both the vertical and horizontal profiles from these 16' & 20'lengths, and screwing them together, much like an Erector set! A chop saw with a metal blade is all you need. Our system is supplied with everything 'internal' to the kit including all the screws, mullion clips, spline, screening and weather-stripping required for your application.
Screen wall system with aluminum kickplate shown
  1. U Channels

These are installed first. H123 - 1" x 2" U channels are installed on the top and bottom horizontal surfaces (floor & underside of existing structure) and on all vertical surfaces (house wall or existing posts). Sometimes H124 -2" x 2" U channels are installed on the underside of the existing structure depending on the pitch. The H123 U channel has a .050" wall thickness .

Screen wall system with aluminum kickplate shown
  1. Main Frames

These are installed next. The 2" x 2" frames are used vertically and their spacing is indicated by red squares in your quotation drawing. If there is no kick-plate in your application, you will also be using the 2" x 2" frames as horizontal "chair rails" between the verticals. The H122 mainframe has a .048" wall thickness and the H120 mainframe (for corners) has a .062" wall thickness .

These are installed next. The 2" x 2" frames are used vertically and their spacing is indicated by red squares in your quotation drawing. If there is no kick-plate in your application, you will also be using the 2" x 2" frames as horizontal "chair rails" between the verticals. The H122 mainframe has a .048" wall thickness and the H120 mainframe (for corners) has a .062" wall thickness .

  1. You will need to make a choice of no kick-plates or 18" or 24" kick-plates
  2. With 'no' kick-plate, the horizontal 2x2 that is installed between verticals can be placed at any height you wish. We recommend somewhere below the midpoint to create a clear line of sight for when you are seated in the room.
  3. Your wall height is determined by the highest 'floor to ceiling' measurement in your existing structure.
  4. We will suggest a screen panel width of 29" to 60" wide depending on the width of your existing openings. We will also lay this out so that the spacing is aesthetically pleasing all the way around. In other words we will avoid having 29" openings on one wall and 42" openings on an adjacent wall. You will receive a drawing from us indicating both 1x2 & 2x2 mainframe placements
  5. You may choose to have as many 3' x 6'8" out-swinging knock down aluminum doors as you deem necessary.

General Information

  • The framing is all extruded aluminum with baked on enamel finish.
  • All parts, which you will cut yourself on site, are screwed together. No plastic pieces. The supplied hardware is extruded aluminum for maximum strength and weather-ability.
  • This is a permanent installation where the material MUST be screwed to a deck or patio.
  • All pricing includes regular charcoal fiberglass screening with an 18x16 nominal mesh count and all the spline necessary for installation.
  • This is a very high quality, long lasting screen room that is easily assembled within one to three days depending on the size of your application.
  • Color Choices: Frame Extrusions - WHITE / CLAY / BRONZE
  • Tools You May Need...click here
  • Full one year warranty against manufacturers defects

Not included in your kit:

  • You are supplied with everything "internal" to your kit. You will need to supply the hardware to attach u-channel to house wall, posts, cement, deck or underside of roof line
  • Sealant / caulking is not supplied
  • Downspout assemblies are not part of this kit

Tools you may need to complete the job

Note this is not given as an exhaustive list, but for reference only

You will need to have tools to cut extruded aluminum and steel. The mainframes are 2"x2" and 1"x2" while any beams will range in size from 3"x3" to 3"x10". In all cases finished lengths are cut on site by the customer.

A 10" carbide tipped blade on a radial arm saw and/or a shop saw, will give you the best results. You may purchase these at your local home improvement center or perhaps even rent one.

You will need to have a drill (cordless is more handy) with magnetic hex head bits to make it easy to use the metal screws supplied with your kit.

Most other items you will need are standard... step ladders, screw drivers, pliers, tape measure, level, carpenters square, caulking gun, pencil, box cutter, chalk line and at least two pairs of hands! Since you are working with metal we suggest you wear protective gloves and eyewear.

For the pan system patio covers, the "W" pans and flat pans often run in a configuration where the final pan will need to be "ripped" to fit the last section. We suggest a pair of electric shears which can be purchased at your local home improvement center or perhaps even rented.

Exploded view of the screen walls installation
H122 - Vertical supports
H120 - Replaces the H122 on a corner
H121 - Horizontal supports...top, bottom and mullion
H123 - top and bottom U channels

Delivery Included!

Delivery Included within Canada. All pricing includes delivery to your home, business or cottage address in or near most major centres within Canada.

Call Toll Free 1.800.922.4760 to speak to a representative or to place your order!

*Some remote and island ferry access areas subject to a surcharge. Other exceptions may apply.

**Please note that some items are custom made and are not returnable**

We provide personal service and advice on your selection. Please call or email us with your questions on deck size, clearances, installation advice and tips. We are here to serve.

Obtaining necessary permits is the sole responsibility of the purchaser. Customers agree to hold Patio Concepts Inc. and the manufacturer free of any liability for improper installation, maintenance and repair.
