Peak Style Shelters

Temporary Gable Style Garages

  • Frame
    All-Steel DuPont thermoset baked on powder coated finish resist rust and corrosion.
  • ShelterLock
    ShelterLock stabilizer Block at every rib connection add strength and stability to the frame.
  • Bolt Frame
    Bolt together hardware at every connection point to ensure maximum strength and durability.
  • Ratchet Tite
    Ratchet Tite tension system and EasyGlide Sliding Cross-Rails keep the cover smooth and tight.
  • UV Treated Fabric
    Triple layer 9oz heat sealed Rip-stop fabric is UV treated inside and out.
  • Universal Steel Foot Plates
    For easy and rock solid connection to cement or pony walls
Product Guarantee
shipping included
shipping included
See specifications below for product and warranty details.

Peak Style Car Shelter Sizes and Design Options

Click to see different colour options:
10' and 11' Shelters 10x8x8 Peak Shelter Green Colour 10x8x8 Peak Shelter Grey Colour

Premium 10' and 11' powdercoated steel frame, fabric shelters in three sizes.

$703.93 View 10' and 11' Specs Buy Now Contact Sales

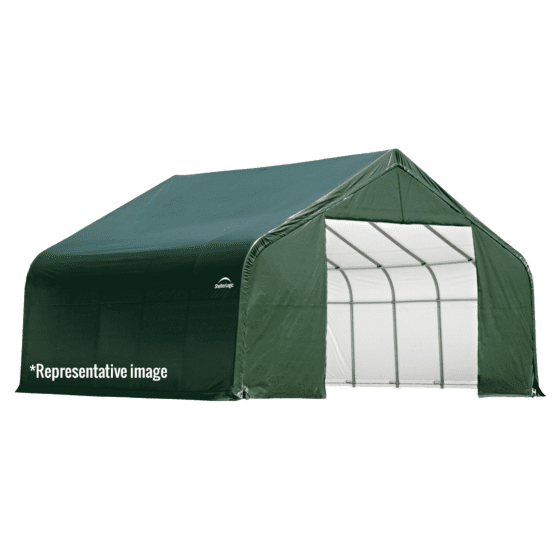

12' and 13' Shelters 12x20x8 Peak Shelter Green Colour 12x20x8 Peak Shelter Grey Colour

Premium 12' and 13' powdercoated steel frame, fabric shelters in three sizes.

$1,198.03 View 12' and 13' Specs Buy Now Contact Sales
15' and 16' Shelters 15x28x12 Peak Shelter Green Colour 15x28x12 Peak Shelter Grey Colour

Premium 15' and 16' powdercoated steel frame, fabric shelters in six sizes.

$2,952.39 View 15' & 16' Specs Buy Now Contact Sales
18' Shelters 18x20x9 Peak Shelter Green Colour 18x20x9 Peak Shelter Grey Colour

Premium 18' powdercoated steel frame, fabric shelters in six sizes.

$2,891.39 View 18' Specs Buy Now Contact Sales
22' Shelters 22x20x11 Peak Shelter Green Colour 22x20x11 Peak Shelter Grey Colour

Premium 22' powdercoated steel frame, fabric shelters in six sizes.

$2,860.89 View 22' Specs Buy Now Contact Sales
28' Shelters 28x20x16 Peak Shelter Green Colour 28x20x16 Peak Shelter Grey Colour

Premium 28' powdercoated steel frame, fabric shelters in six sizes.

$6,191.49 View 28' Specs Buy Now Contact Sales

Patio Concepts Inc is a leading distributor of garage products shipping nationwide. We carry portable garage and carport products in a huge range of sizes; perfect for anything that needs protection for temporary or permanent all weather element protection. With factory direct pricing we ship all buildings nationwide.

Package Includes

  • 1.6" or 2.4" Steel Frame
  • 9oz per sq.m. triple layer woven polyethylene tarp with heat sealed seams, UV treated inside and out plus fade blockers. Available in grey and green.
  • (1) Double Zippered Front Door
  • (1) Double Zippered Rear Door
  • 15" or 30in. Auger Anchors (depending on model and size - see brochure)
  • Steel Foot plates
  • Ratchet Tie Downs
  • Easy Step-by-Step Instructions
Size 10 x 8 x 8 ft. 10 x 12 x 8 ft. 10 x 16 x 8 ft. 11 x 8 x 10 ft. 11 x 12 x 10 ft. 11 x 16 x 10 ft.
Pricing $703.93 $905.23 $1,033.33 $894.25 $1,004.05 $1,132.15
SKU 72803 (Grey)
72804 (Green)
72813 (Grey)
72814 (Green)
72823 (Grey)
72824 (Green)
72853 (Grey)
72854 (Green)
72863 (Grey)
72864 (Green)
72873 (Grey)
72874 (Green)
Total Storage Area (sq. ft.) 83 125 167 88 132 177
Total Storage Volume (cu. ft.) 503 759 1015 665 571.88 760.32
Exterior Dimensions Depth (in.) 96.6 144.1 191.6 96.6 144 191.4
Interior Dimensions Depth (in.) 93.3 140.8 188.1 93.3 140.7 188.1
Frame Color Grey
Rib Tubing Diameter (in.) 1.65
Exterior Dimensions Width (in.) 131 138.8
Exterior Dimensions Height (in.) 93.8 117.1
Interior Dimensions Width (in.) 127.7 138.8
Interior Dimensions Height (in.) 92.1 115.5
Door Opening Width Top (in.) 94
Door / Entrance Width Bottom (in.) 94
Door / Entrance Height Outside (in.) 66 90
Wall Height (ft.) 69.69 93.25
Material Standard 9 oz
Assembly Required Yes
Assembly Manual Download (PDF) Download (PDF)
Style Peak
Door Type 2 Double zippered doors, front and rear
Warranty 1 year
Waterproof Yes
Size 12 x 20 x 8 ft. 12 x 24 x 8 ft. 12 x 28 x 8 ft. 13 x 20 x 10 ft. 13 x 24 x 10 ft. 13 x 28 x 10 ft.
Pricing $1,198.03 $1,457.89 $1,620.15 $1,372.49 $1,653.09 $1,781.19
SKU 71434 (Grey)
71444 (Green)
72434 (Grey)
72444 (Green)
76432 (Grey)
76442 (Green)
73432 (Grey)
73442 (Green)
74432 (Grey)
74442 (Green)
90243 (Grey)
90244 (Green)
Total Storage Area (sq. ft.) 250 301 351 263 316 369
Total Storage Volume (cu. ft.) 1576 1894 2211 2068 2484 2900
Exterior Dimensions Depth (in.) 239.1 286.5 334 239.1 286.5 334
Interior Dimensions Depth (in.) 235.8 283.2 330.7 235.8 283.2 330.7
Frame Color Grey
Rib Tubing Diameter (in.) 1.65
Exterior Dimensions Width (in.) 156.1 163.9
Exterior Dimensions Height (in.) 97.4 121
Interior Dimensions Width (in.) 152.8 160.6
Interior Dimensions Height (in.) 95.7 119.4
Door Opening Width Top (in.) 102
Door / Entrance Width Bottom (in.) 120 122
Door / Entrance Height Outside (in.) 75 100
Wall Height (ft.) 69.12 93
Material Standard 9 oz
Assembly Required Yes
Assembly Manual Download (PDF) Download (PDF)
Style Peak
Door Type 2 Double zippered doors, front and rear
Warranty 1 year
Waterproof Yes
Size 15 x 20 x 12 ft. 15 x 24 x 12 ft. 15 x 28 x 12 ft. 16 x 36 x 16 ft. 16 x 40 x 16 ft. 16 x 44 x 16 ft.
Pricing $2,952.39 $3,182.97 $3,413.55 $4,330.99 $4,814.11 $5,346.03
SKU 95350 (Grey)
95351 (Green)
95370 (Grey)
95371 (Green)
75232 (Grey)
75242 (Green)
79431 (Grey)
79441 (Green)
95843 (Grey)
95844 (Green)
95943 (Grey)
95944 (Green)
Total Storage Area (sq. ft.) 300 360 421 573 637 701
Total Storage Volume (cu. ft.) 2873 3454 4034 7268 8081 8893
Exterior Dimensions Depth (in.) 239.8 287.2 334.7 429.7 477.2 524.6
Interior Dimensions Depth (in.) 235 282.5 330 425 472.4 519.9
Frame Color Grey
Rib Tubing Diameter (in.) 2.36
Exterior Dimensions Width (in.) 188.3 199
Exterior Dimensions Height (in.) 145.5 190.8
Interior Dimensions Width (in.) 183.5 194.3
Interior Dimensions Height (in.) 143.1 188.4
Door Opening Width Top (in.) 120
Door / Entrance Width Bottom (in.) 120
Door / Entrance Height Outside (in.) 112 160
Wall Height (ft.) 90.5 135.5
Material Standard 9 oz
Assembly Required Yes
Assembly Manual Download (PDF) Download (PDF)
Style Peak
Door Type 2 Double zippered doors, front and rear
Warranty 1 year
Waterproof Yes
Size 18 x 20 x 9 ft. 18 x 20 x 11 ft. 18 x 24 x 9 ft. 18 x 24 x 11 ft. 18 x 28 x 9 ft. 18 x 28 x 11 ft.
Pricing $2,891.39 $3,001.19 $3,220.79 $3,330.59 $3,598.89 $3,690.49
SKU 80043 (Grey)
80044 (Green)
80016 (Grey)
80017 (Green)
80001 (Grey)
80002 (Green)
80020 (Grey)
80021 (Green)
80005 (Grey)
80006 (Green)
80024 (Grey)
80025 (Green)
Total Storage Area (sq. ft.) 331 332 398 399 465 466
Total Storage Volume (cu. ft.) 2402 3035 2887 3648 3372 4261
Exterior Dimensions Depth (in.) 239.8 239.8 287.2 287.2 334.7 334.7
Interior Dimensions Depth (in.) 235 235 282.5 282.5 330 330
Frame Color Grey
Rib Tubing Diameter (in.) 2.36
Exterior Dimensions Width (in.) 207.5 208 207.5 208 207.5 208
Exterior Dimensions Height (in.) 114.8 138.3 114.8 138.3 114.8 138.3
Interior Dimensions Width (in.) 202.8 203.3 202.8 203.3 202.8 203.3
Interior Dimensions Height (in.) 112.4 135.9 112.4 135.9 112.4 135.9
Door Opening Width Top (in.) 150 180 150 180 150 180
Door / Entrance Width Bottom (in.) 150 180 150 180 150 180
Door / Entrance Height Outside (in.) 72 81 72 81 72 81
Wall Height (ft.) 42 65.5 42 65.5 42 65.5
Material Standard 9 oz
Assembly Required Yes
Assembly Manual Download (PDF) Download (PDF) Download (PDF) Download (PDF) Download (PDF) Download (PDF)
Style Peak
Door Type 2 Double zippered doors, front and rear
Warranty 1 year
Waterproof Yes
Size 22 x 20 x 11 ft. 22 x 20 x 13 ft. 22 x 24 x 11 ft. 22 x 24 x 13 ft. 22 x 28 x 11 ft. 22 x 28 x 13 ft.
Pricing $2,860.89 $3,141.49 $3,208.59 $3,501.39 $3,611.19 $3,861.29
SKU 78431 (Grey)
78441 (Green)
82043 (Grey)
82044 (Green)
78631 (Grey)
78641 (Green)
82143 (Grey)
82144 (Green)
78731 (Grey)
78741 (Green)
82243 (Grey)
82244 (Green)
Total Storage Area (sq. ft.) 248.76 298.17 347.57
Total Storage Volume (cu. ft.) 2089.78 2504.84 2919.91
Exterior Dimensions Depth (in.) 239.1 286.5 334
Interior Dimensions Depth (in.) 235.8 283.2 330.7
Frame Color Grey
Rib Tubing Diameter (in.) 1.65
Exterior Dimensions Width (in.) 149.8
Exterior Dimensions Height (in.) 124
Interior Dimensions Width (in.) 146.5
Interior Dimensions Height (in.) 122.36
Door Opening Width Top (in.) 102
Door / Entrance Width Bottom (in.) 122
Door / Entrance Height Outside (in.) 100
Wall Height (ft.) 93.89
Material Standard 9 oz
Assembly Required Yes
Assembly Manual Download (PDF)
Style Peak
Door Type 2 Double zippered doors, front and rear
Warranty 1 year
Waterproof Yes
Size 28 x 20 x 16 ft. 28 x 20 x 20 ft. 28 x 24 x 16 ft. 28 x 24 x 20 ft. 28 x 28 x 16 ft. 28 x 28 x 20 ft.
Pricing $5,441.19 $6,191.49 $6,395.23 $7,109.54 $7,257.77 $7,997.09
SKU 86043 (Grey)
86044 (Green)
86062 (Grey)
86063 (Green)
86047 (Grey)
86048 (Green)
86066 (Grey)
86067 (Green)
86051 (Grey)
86052 (Green)
86070 (Grey)
86071 (Green)
Total Storage Area (sq. ft.) 546 544 657 654 767 764
Total Storage Volume (cu. ft.) 6608 8810 7943 10590 9278 12369
Exterior Dimensions Depth (in.) 189.3 239.8 287.2 287.2 334.7 334.7
Interior Dimensions Depth (in.) 235 235 282.5 282.5 330 330
Frame Color Grey
Rib Tubing Diameter (in.) 2.36
Exterior Dimensions Width (in.) 339.5 338.1 339.5 338.1 339.5 338.1
Exterior Dimensions Height (in.) 189.3 237.8 189.3 237.8 189.3 237.8
Interior Dimensions Width (in.) 334.8 333.3 334.8 333.3 334.8 333.3
Interior Dimensions Height (in.) 186.9 235.4 186.9 235.4 186.9 235.4
Door Opening Width Top (in.) 300
Door / Entrance Width Bottom (in.) 300
Door / Entrance Height Outside (in.) 105 153 105 153 105 153
Wall Height (ft.) 82.57 131.03 82.57 131.03 82.57 131.03
Material Standard 9 oz
Assembly Required Yes
Assembly Manual Download (PDF) Download (PDF) Download (PDF) Download (PDF) Download (PDF) Download (PDF)
Style Peak
Door Type 2 Double zippered doors, front and rear
Warranty 1 year
Waterproof Yes

For more sizes available. Contact Us
