Hard Top Screen Rooms

Aluminium Screened In Porch Kit

The ultimate in outdoor living for your home, cottage or RV. Our hard top screen rooms stay up all year round and can be designed for any size deck or patio. High quality and durable, the engineered polystyrene core roof panels come in three thicknesses and the extruded framing for the walls comes in two different models and three frame colors.

With so many style and material options, we can offer you a truly unique screen enclosure designed exactly for your space all in a DIY friendly kit that can save you thousands over a contractor.

View Details Order Online »

Quality Permanent Room

This high quality, long lasting screen room is easily assembled within one to three days depending on the size of your application. All parts are screwed together. There are no plastic pieces.

The framing is all extruded aluminum with baked on enamel finish. The supplied hardware is extruded aluminum for maximum strength and weather-ability. Our system is supplied with everything 'internal' to the kit including all the screws, mullion clips, spline, screening and weather-stripping required for your application.

Almost any size is possible! Projections from 4' to 20' | Widths from 4' to any size.

White Porch Screening Kit

Features and Specifications

Roof Specs

  • 3", 4" & 6" thick "engineered" panels
  • 024" or 032" laminated aluminum on both sides
  • Projections from 4' to 20' & Widths from 4' up!
  • .5lbs Polystyrene Core Insulated Roof panels
  • 20, 30 & 40+ lb./sq. ft. snow load ratings.

Custom + Fixed Sizes

We have a number of pre-sized specials available that you can order online.If we don't have a fixed size that fits the exact space you need, no problem! You can request a quote for custom sized screenrooms by calling us at 1.800.922.4760.

What's Included

  • Insulated or flat pan panels, thermally broken c-channel, tar tape, silicone and all necessary hardware for the roof assembly.
  • All aluminum extrusions, screen, spline hardware and accessories for the screen enclosure.
  • Screen walls frame in white, clay or dark bronze.
  • Extruded Aluminum Side Fascia and Gutters


These units are designed according to the available engineering for our roof systems. The screen wall system we supply will always be more than sufficient to support the roof and the load for your area. Engineering on the screen walls is is only available on the 2" x 3" system. For snow loads up to 40psf this screen system can be used, beyond that we will will incorporate into the design, a set of beam and posts which will satisfy your municipal building department requirements.

Cover Options


Insulated Covers

Insulated covers offer a fast and easy installation with snap-lock panels made with a high density 1.5 lb expanded polystyrene core. The panels come standard with a 15 year warranty, and are a customer favorite given their durability and thermal performance. The minimum roof panel thickness is determined based on the desired projection and the local load requirements, but larger panels can be selected if desired for visual or performance advantages.

Cover Options

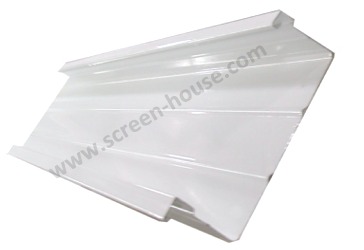

Flat Pan Aluminum Covers

Flat pan roof systems offer a more economical option for a permanent three season screen enclosure. They are ideal for areas where insulation from the direct sun isn't really needed. Can be installed at home, at the cottage or at the trailer and capable of snow loads up to 40psf.

Flat Pan Covers

Snow Loads

Our units are pre-engineered roofing systems that have been approved by qualified, state approved engineers in 45 States and rated according to 2011 International Building Codes.

Flat Pan Covers

Frame Details


2x2 Aluminum Screen Frame

The 2" x 2" frame system is by far the most commonly used screen enclosure kit due to its quality and value mix. The vertical 2x2 posts of the screen wall system supports the roof structure and is capable of loads up to 40psf with openings less than 40". These posts also have a spline groove integrated that is used to directly screen in the room and minimize visual obstructions. There is no engineering available the 2x2 system, so not recommended when going for building permit.

2x3 Aluminum Screen Frame

Increasing the size of the frame to the stronger 2" x 3" posts allows you to increase the size of the openings while still maintaining up to a 40psf snow load rating. They are similar in style and function to the 2x2 system, but can support more roof load due to the larger construction. These systems have engineering available, so the preferred choice when a building permit is needed.

Flat Pan Covers

Beam and Posts Alternative

Where openings larger than 54" are desired or the local snow load exceeds 40psf, we can design your room with larger 3x3 or 4x4 posts and beams and then screen within each opening. This option is essentially an insulated patio cover or aluminum patio cover paired with a porch screen kit.

Flat Pan Covers

Screen Options


Wide Range of Screen Options Available

We have fifteen different screen options ranging from standard fiberglass woven from permanent glass yarn, to a glass shield fiberglass mesh that has been vinyl – laminated, tightly-woven aluminum mesh, pet-resistant insect screening that is tear and puncture-resistant to prevent damage by dogs and cats, solar Insect Screening offers the ultimate in insect protection while at the same time stopping up to 65% of the sun’s heat and glare, and more!

Screen Options

Style Options


Kick Plate

Roll formed aluminum kickplates offer protection on the lower portion of the screen walls that are subject to more damage from impact or animals. Choose to have no kick-plate, 18" high kick-plate or 24" high kick-plate.

Kick Plate

Chair Rail / Horizontal Mullions

For rooms without a kickplate, a horizontal 2x2 chair rail is recommended to be installed between verticals if any openings are larger than 54". Horizontals can be placed at any height you wish, but we recommend somewhere below the midpoint to create a clear line of sight for when you are seated in the room. Add more horizontals if you prefer an alternative visual appearance.

Chair Rail

Fan Beam Panel

The fan beam both acts as a hidden conduit to hide wiring and also adds additional structural integrity to hold lamps or fans up to 50lbs. A nice clean finish that your friends will think was installed by a pro!

Fan Beam Panel


Aluminum screen wall extrusions come is several colors that can be selected individually to create your own unique space. Choose between White, Sandstone, Wheat and Dark Bronze for either the 2x2 or 2x3 system. The 2x2 system also has the option for Black for a more contemporary look. Your room can be one single color or accent with a combination of light and dark colors. The choice is yours!

Matching colors (with the exception of black( are available for the roof extrusions as well, though some panel options (.032" skin in 4" panels, for example) are only available in white. Please contact a representative if you have any questions or to confirm color options for your configuration.

White White
Wheat Wheat
Sandstone Sandstone
Dark Bronze Dark Bronze
Black* Black

*Black is only available on the 2x2 screen wall kit

Windows & Doors



From one-lite tempered glass and insulated storm doors to Classic screen doors with brass or platinum hardware, we have ten different styles of doors - including a full-lite 2 inch aluminum insulated door that has a Residential Performance Grade (PG) of R-PG50.



Windows are available as an upgrade to screen walls to create a full three season enclosure. Generally, these are recommended to be ordered once your screen room has been installed to ensure optimal fit of the windows. We have four window options available, from standard fiberglass screening to heavy duty windows, horizontal sliders and vertical four track panels - all long lasting and not easily damaged.


Fixed & Custom Sizes


2022 Specials - Standard Sizes

We have a number of standards insulated hard top deck enclosures available for purchase immediately. Select from some of the more commonly purchased projections and widths if one of the them fits the space you have.

Buy Now
Buy Now

Custom Sizes & Quotes

Don't see the size you need? No problem! Almost any other size is possible possible. Call us at 1.800.922.4760 to get a quote or download this form & email it to us. Whatever is easier for you.

Custom Sizes

Delivery Included!

Delivery Included within Canada. All pricing includes delivery to your home, business or cottage address in or near most major centres within Canada.

Call Toll Free 1.800.922.4760 to speak to a representative or to place your order!

*Some remote and island ferry access areas subject to a surcharge. Other exceptions may apply.

**Please note that some items are custom made and are not returnable**

We provide personal service and advice on your selection. Please call or email us with your questions on deck size, clearances, installation advice and tips. We are here to serve.

Obtaining necessary permits is the sole responsibility of the purchaser. Customers agree to hold Patio Concepts Inc. and the manufacturer free of any liability for improper installation, maintenance and repair.
