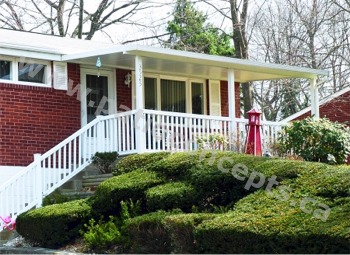

Insulated Patio Cover Pictures

Insulated Patio Cover Pictures

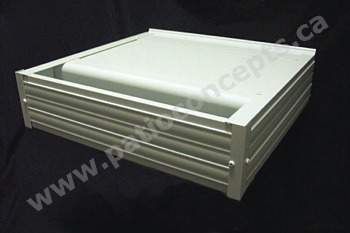

Laminated Aluminum Roof Panels / Polystyrene Core

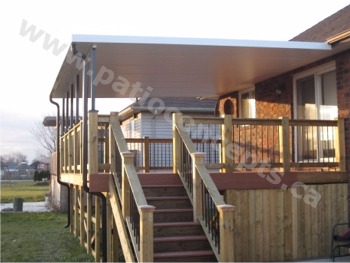

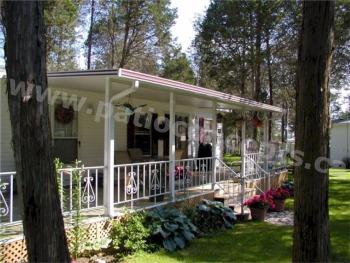

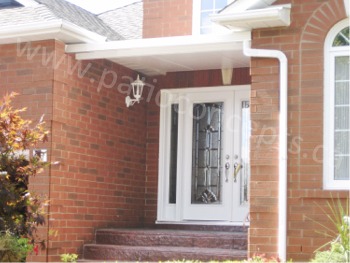

An aluminum patio cover can be used in a variety of applications. At your cottage, on your backyard patio, front of the house car ports or to finish underneath an existing deck.

Our do it yourself patio cover and carport kits are the ultimate in strong and durable aluminum or steel, designed for low maintenance, do it yourself kits. Whatever way you look at it, if you want to cover your existing patio, Patio Concepts Inc. offers a full line of IBC Rated Aluminum patio covers.

Looking for a different style of shade cover for your backyard? Checkout our range of maintenance free vinyl pergola options.

Do it yourself kits

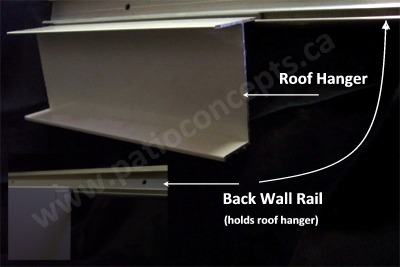

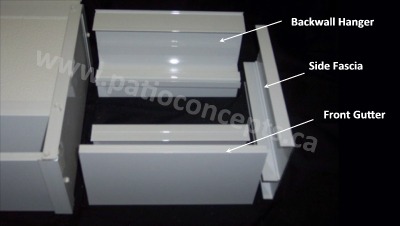

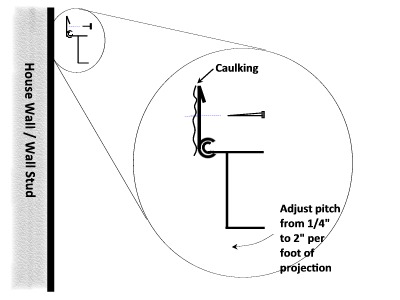

Our back-wall rail and hanger are all extruded aluminum. The roof hanger slides into the back wall rail and works together to allow for the roof pitch to adjust from 1/4" down to 2" per foot of projection. We will suggest a pitch of 1/2" per foot of projection as being perfect for the engineered panel system.

Maximum Panel Simple Span Load Table

Projection 3" Roof Thickness 4.5" Roof Thickness 6" Roof Thickness
8' 76 lbs./sq. ft. over 80 lbs./sq. ft. over 100 lbs./sq. ft
10' 47 lbs./sq. ft. 79 lbs./sq. ft. 97 lbs./sq. ft.
12' 29 lbs./sq. ft. 52 lbs./sq. ft. 67 lbs./sq. ft.
14' 20 lbs./sq. ft. 38 lbs./sq. ft. 54 lbs./sq. ft.
16' n/a 29 lbs./sq. ft. 49 lbs./sq. ft.
18' n/a n/a 35 lbs./sq. ft.

Our units are pre-engineered systems that have been approved by qualified, provincially approved engineers. Our systems are rated according to 2009 International Building Codes. Snow drifting and wind uplift have not been considered in the wall attached units. If local specifications require such engineering, these standards can be met at an additional cost. Current approved standards assume an importance factor equal to 1 & wind exposure equal to "B". If you require documentation and registered engineering stamps we will submit your request with your quotation.

We cannot talk to engineers about such items prior to knowing what it is you require.

**Please check with your permit office before purchasing a building kit. Obtaining necessary permits is the sole responsibility of the purchaser. Customers agree to hold Patio Concepts Inc and the manufacturer free of any liability for improper installation, maintenance and repair.

Delivery Included!

Delivery Included within Canada. All pricing includes delivery to your home, business or cottage address in or near most major centres within Canada.

Call Toll Free 1.800.922.4760 to speak to a representative or to place your order!

*Some remote and island ferry access areas subject to a surcharge. Other exceptions may apply.

**Please note that some items are custom made and are not returnable**

We provide personal service and advice on your selection. Please call or email us with your questions on deck size, clearances, installation advice and tips. We are here to serve.

Obtaining necessary permits is the sole responsibility of the purchaser. Customers agree to hold Patio Concepts Inc. and the manufacturer free of any liability for improper installation, maintenance and repair.
