Manual, Motorized & Solar Exterior Shades

High Quality Exterior Sun Shade

Elegant, reliable, easy to install and use! The perfect exterior solar shade for your windows, screen enclosure or pergola. This outdoor blind is available in 3 housing colours, 4 mesh colours and extends up to 10' length in either motorized or manual versions. The fine weave mesh fabric of the sunshade blocks 95% of sunlight, protecting your family, guests, furniture and pets against UV and heat.

The solid aluminum housing is easily installed on a wall or under eaves so it can be quickly installed in front of windows, on your porch, gazebo, or any other outdoor structure. Motorized versions comes with a 5 channel remote control enabling the operation of several shades. Can't decide which fabric you prefer? We can send you samples at no cost!

Configure & Order Online » Contact Sales

Manual or Motorized

Choose a manual crank or fully motorized solar shade with remote control and UL certified motor. Opens up to 10’ high.

UVA and UVB Protection

It blocks 95% of the sun, wind or mist, yet still lets in soft, filtered light and air.

Convenient

Easy to clean: simply use soap and water, no chemical treatment necessary.

Strong and Versatile

Guide cables keep the fabric straight, even in windy conditions. Three housing colours, 4 fabulous mesh colours and 25 widths.

Elegant, reliable, easy to install and use, the Multiple Shade is a sturdy outdoor shade that you can install in front of a window or to block the sun under a pergola, gazebo or balcony.

Your shade will be delivered within a 3 to 5 weeks. Limited 5 year warranty on structure. Limited 10 year warranty on fabric. Assembled in North America.

Download Manual

Size & Style Options



Classy fine weave mesh fabric available in 4 colors, Aluminum housing with choice of 3 powder-coated colors, and 25 choices of width.

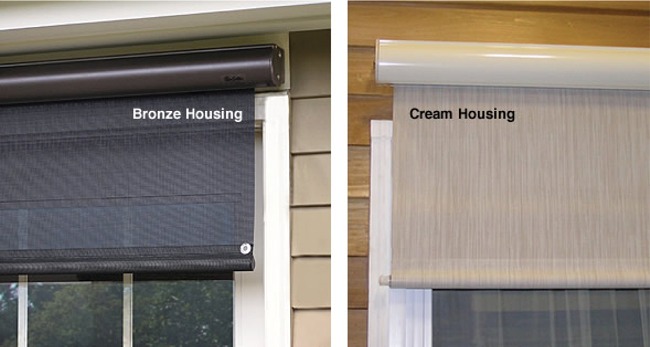

Casette/Structure Colours

Cream Onyx Black Soft White

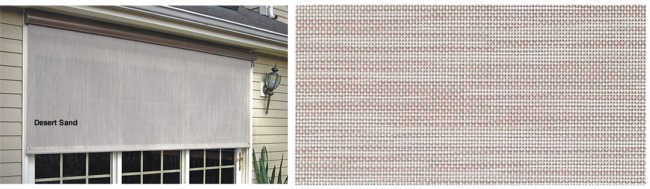

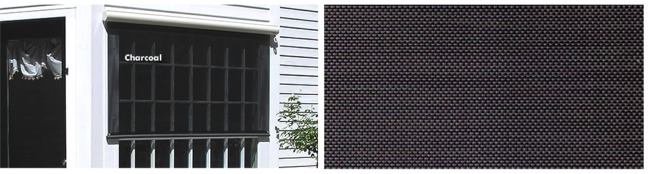

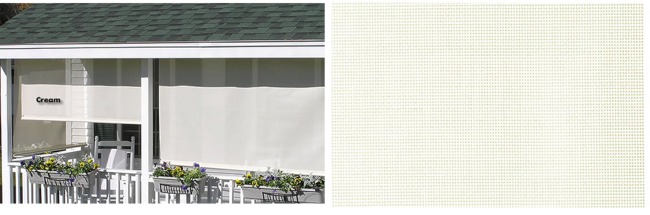

Fabric Colours

Black Grey Sand White

Measuring & Installing



Installing Solar Shades Expand
Installing Solar Shades
Installing Solar Shades Expand
Installing Solar Shades
  • Multiple Shades come in increments of 6 inches, from 3′ to 15′. The fabric is about 3 inches less than the total housing width. Measure the space where you want to put your Multiple Shade.
  • The dimension ordered is the full width of the housing.
  • The housing is 5,5″ high by  4,5″ deep and the bracket is 3,5 inches long. Make sure you have at least 3,5″ of flat surface to install the brackets but you will also need to make sure that you have enough unobstructed space for the housing itself. The mounting brackets are universal and can be mounted on walls or under eaves or a ceilings.
  • Make sure you have space down the sides of your installation area where you can install the small brackets that keep the cables taut. These brackets can be installed on the ground or on a wall or door jamb. The cables are approximately 10’4″ long.
  • Decide if you want the motor of your Motorized Multiple Shade on the right or the left end. The side is always decided when outside, looking in at the house or gazebo. The cord is 15′ and plugs into an approved GFI outlet.

Pricing



Size Manual Motorized
3' $625 $860 $1041
3.5' $650 $875 $1063
4' $675 $900 $1128
4.5' $705 $920 $1151
5' $735 $960 $1213
5.5' $755 $990 $1236
6' $785 $1010 $1259
6.5' $795 $1020 $1302
7' $815 $1070 $1324
7.5' $845 $1100 $1347
8' $985 $1220 $1468
8.5' $995 $1270 $1487
9' $1005 $1320 $1529
9.5' $1015 $1340 $1580
10' $1065 $1370 $1632
10.5' $1115 $1420 $1650
11' $1165 $1470 $1674
11.5' $1195 $1520 $1688
12' $1215 $1570 $1748
12.5' $1235 $1590 $1772
13' $1250 $1600 $1791
13.5' $1259 $1620 $1823
14' $1280 $1630 $1870
14.5' $1300 $1650 $1903
15' $1330 $1660 $1921

Delivery Included!

Delivery Included across Canada in or near most major centres within Canada. Home delivery may be subject to an additional delivery fee. Please inquire for an exact price before order.

Call Toll Free 1.800.922.4760 to speak to a representative or to place your order!

*Some remote and island ferry access areas subject to a surcharge. Other exceptions may apply.

**Please note that some items are custom made and are not returnable**

We provide personal service and advice on your selection. Please call or email us with your questions on deck size, clearances, installation advice and tips. We are here to serve.

Obtaining necessary permits is the sole responsibility of the purchaser. Customers agree to hold Patio Concepts Inc. and the manufacturer free of any liability for improper installation, maintenance and repair.
