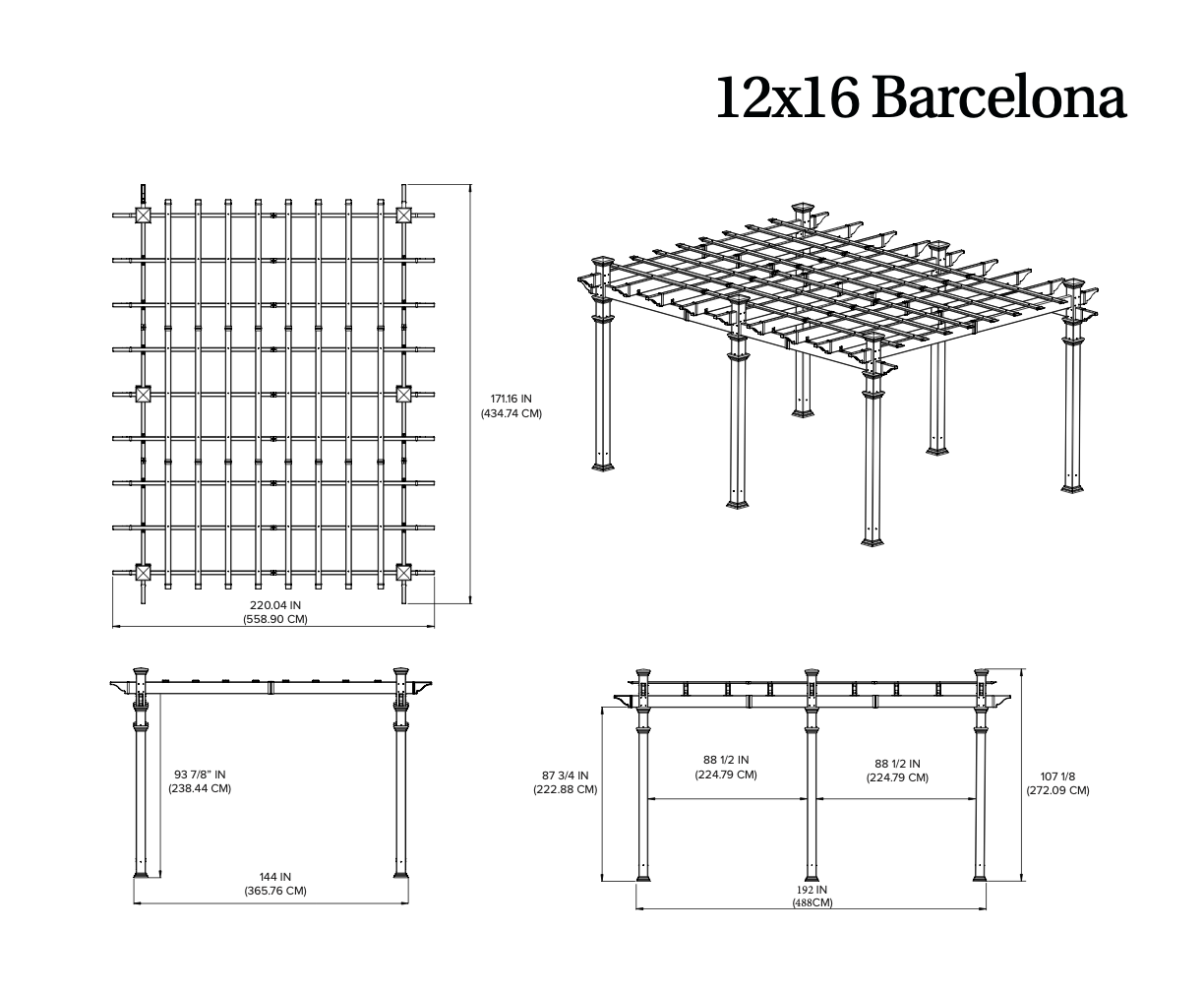

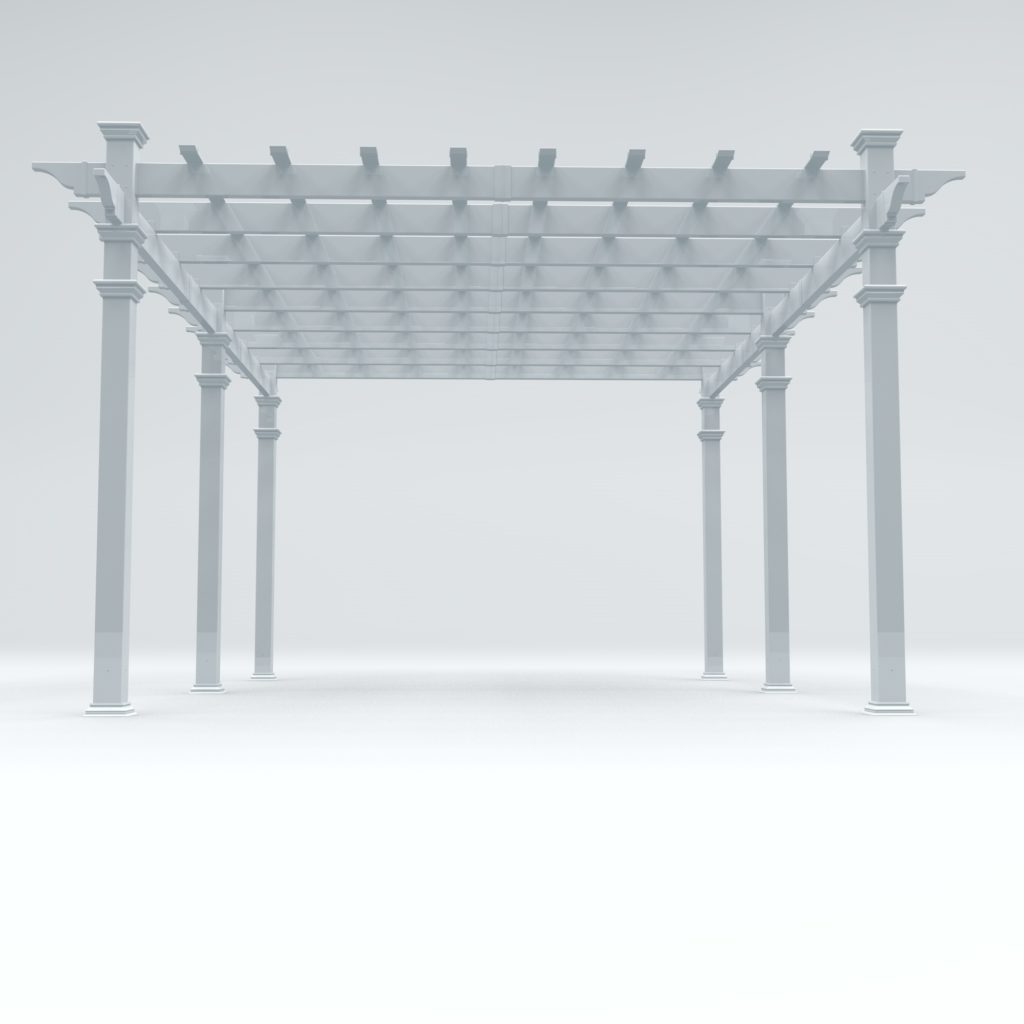

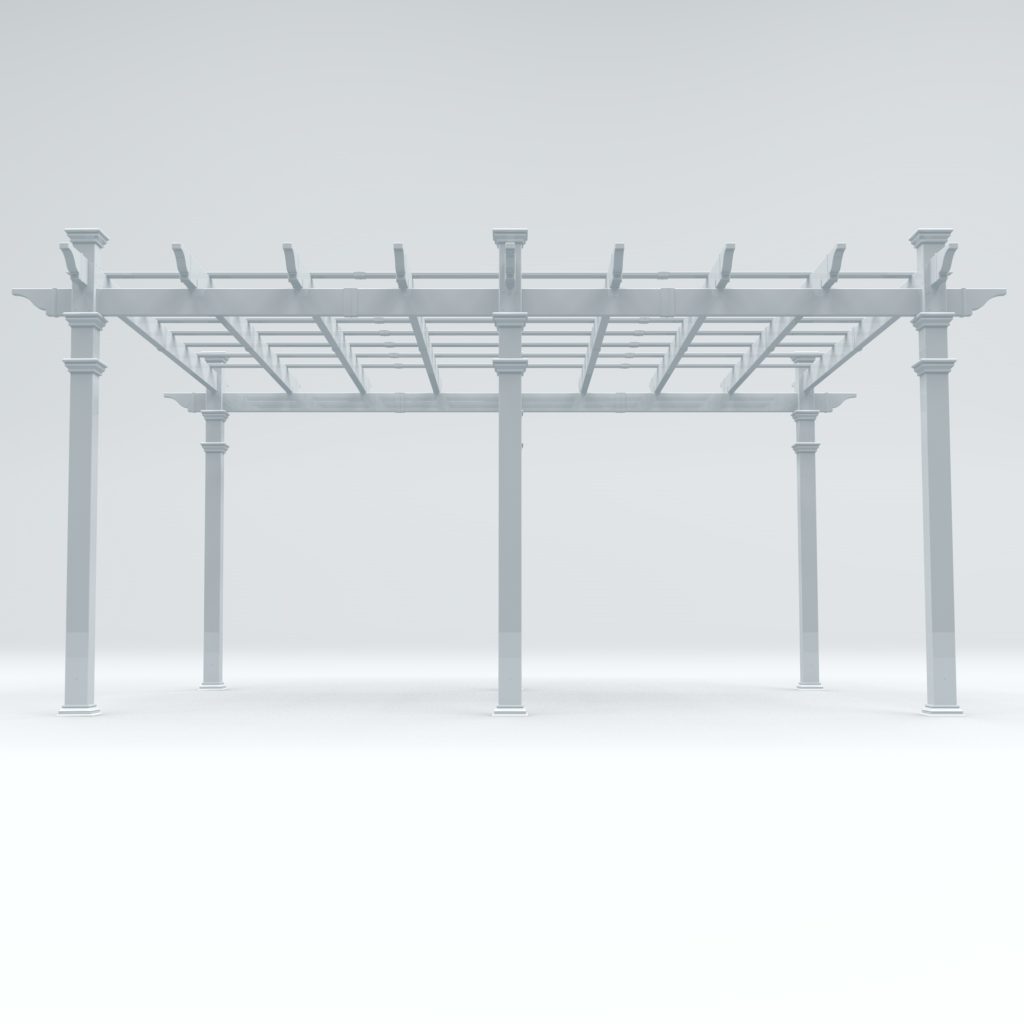

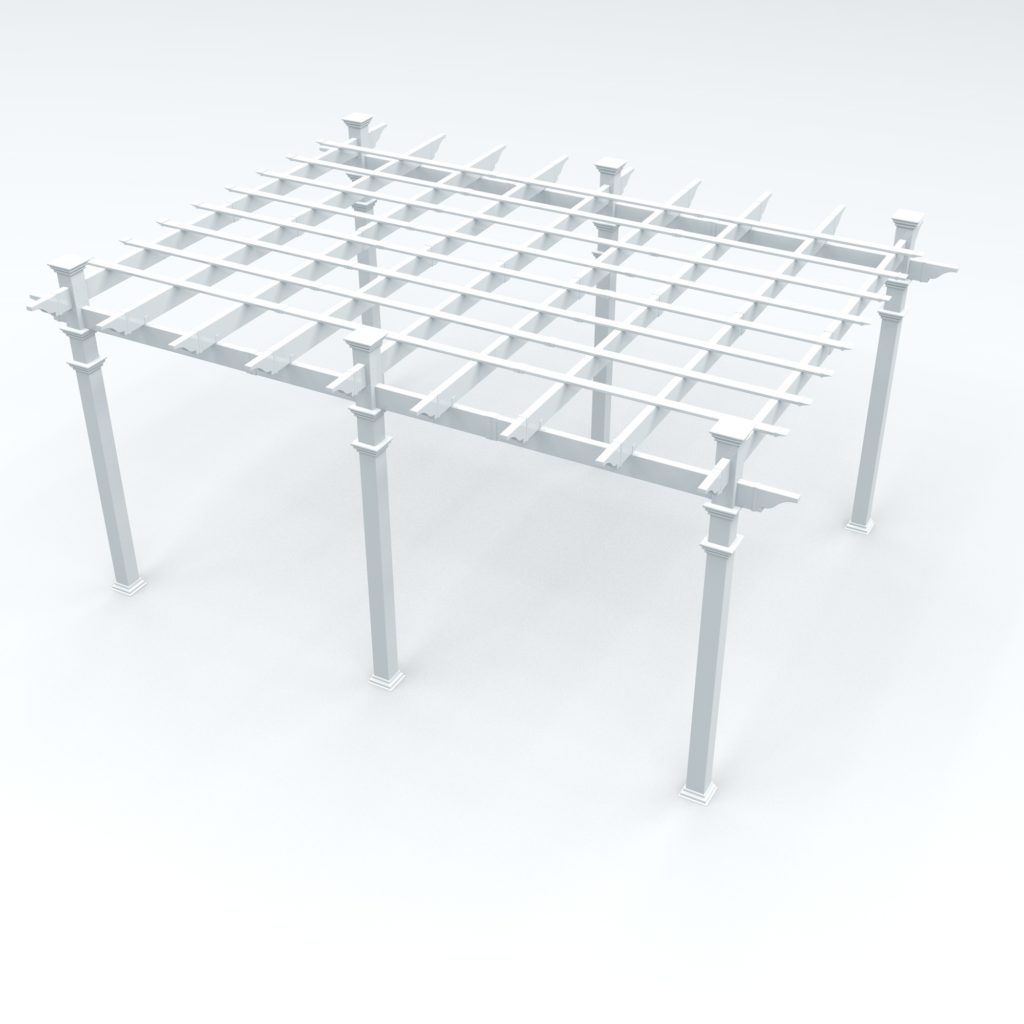

The Barcelona Pergola

• 2x6x12’ (5x15x365cm) Pressure Treated Wood for Rafter Beams. Purchase at local building centre. QUANTITY: x9
  2x6x16’ (4x15x488cm) Pressure Treated Wood for Support Beams. Purchase at local building centre. QUANTITY: x2
• Concrete Ready Mix. Purchase at your local building centre. QUANTITY: x6 (one per column bottom)
• 6 Wood Stakes and small roll of String. Purchase at your local building centre
• 3/8“ x 3 1/2” (10x90mm) Lag Screws (for wood wall) or Anchor Screws (for brick or concrete wall) QUANTITY: x11
  (purchase at local building center, also purchase drill bit)
• If Mounting Pergola in Ground: 4x4x10’ (10x10x300cm) Pressure Treated Wood for Posts. Purchase at local building centre.
  QUANTITY: x6
• If Mounting Pergola on Concrete or Wood Deck (not intended to be installed on concrete pavers, patio stones, or
  interlocking bricks): 4x4x7’ [10cmx10cmx200cm] Pressure-Treated Wood Posts (6). Purchase at local building centre.

Refer to bolt down bracket instructions for hardware requirements, as they pertain to your application: 4×4 Bolt Down Bracket Kit. (purchase from www.newenglandarbors.com or a retailer of our products)

If mounting pergola onto an existing concrete surface:

• 1/2“ x 3 1/2” x 12“ (1.3×9.x30.5cm) Wood Shims (24) – Can Be Cut from 1/2” (1.3cm) Sheet of Plywood
• 1/4” x 2 3/4“ (6x70mm) Cement Screws – Countersunk Head (18)
• 3/16” (5mm) Concrete drill bit. Minimum 3“ long (1)

If mounting pergola onto a wooden/composite deck with AN ACCESSIBLE UNDERSIDE:

• 1/2“ x 3 1/2” x 12“ (1.3×9.x30.5cm) Wood Shims (24) – Can Be Cut from 1/2” (1.3cm) Sheet of Plywood
• 1/4” x ?“ (6x?mm) Bolts and Nuts – Countersunk Head (9) (Length depends on the thickness of the blocking material)
• 1/4” (6mm) Washers (9)
• 1/4” (6mm) Wood drill bit. Minimum 3“ long (1)
