Deck Enclosure System for Trailers

Jardin Wall Attached Screen Rooms

Add-a-room Deck Enclosure Kits









With a heavy duty, waterproof, heat-sealed vinyl top, this deck enclosure is the top of the line in 3 season screen rooms. Designed to go up in the spring and come down in the fall, the ease of assembly is the beginning of this great design!



This unit will enable you to start enjoying the outdoor space at the cottage, without the mosquito, as well as with protection from the sun, wind and rain.

You can design your screen room to be any combination of enclosed screen room with open canopy (on right or left hand side. Please call us for pricing on the one you would like to build!  This system illustrates the benefit of putting the horizontal support bars at the 1/3 level of the total height of the screen panel - - easy to look out of the roof when you are sitting down!



Delivery Included!
All pricing includes delivery to your home, business or cottage address in or
near most major centres within Canada.
√ Delivery Included!* | √ No Handling Fees | √ Only applicable taxes are extra

*Some exceptions may apply.
*Click for details

Got Questions? Call 1.800.922.4760Do you have questions?
We would love to help! Call and talk it through with us.

Call: 1-800-922-4760...

We provide personal service and advice on your selection. Please call or email us with your questions on deck size, clearances, installation advice and tips. We are here to serve.

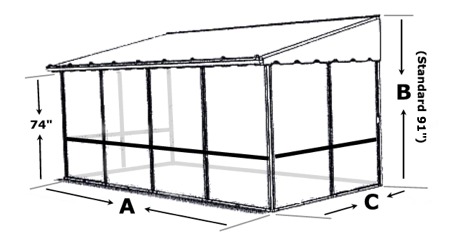

How to Measure



*NOTE:

There is no variation to the standard back wall height of 91" for this application.


The MINIMUM back-wall height requirements ("B") are as follows...

  Minimum for all Projections is 91"
  Maximum = 91"



*Standard 91" Back-Wall Height Price  ($) CAN  - Credit Card -
You may receive an additional 5% discount on the pricing below by paying with a certified cheque!
Model # Actual Size
(with 74" x  44" frames)

C
Projection =
Out from House

A
Width =
Along the House


# of Screen Panels

Unit Only Unit with
Mylar Windows
(top & bottom)
Unit with
Top Mylar Windows
& bottom Vinyl Panels
GR-1000-07 7'6" 10' 7 $2839.50 $3451.50 $3585.00
GR-1100-07 7'6" 11'3" 7 $3211.50 $3825.00 $3958.50
GR-1500-07 7'6" 15' 8 $3670.50 $4369.50 $4522.50
GR-1800-07 7'6" 18'9" 9 $4096.50 $4884.00 $5055.00
GR-2200-07 7'6" 22'6" 10 $4597.50 $5473.50 $5664.00
GR-2600-07 7'6" 26'3" 11 $5139.00 $6102.00 $6312.00
GR-3000-07 7'6" 30' 12 $5518.50 $6567.00 $6796.50
GR-3300-07 7'6" 33'9" 13 $6019.50 $7156.50 $7404.00
GR-3700-07 7'6" 37' 14 $6454.50 $7680.00 $7947.00
.
GR-1000-10 10' 10' 9 $3510.00 $4297.50 $4468.50
GR-1100-10 10' 11'3" 9 $3906.00 $4693.50 $4864.50
GR-1500-10 10' 15' 10 $4459.50 $5334.00 $5524.50
GR-1800-10 10' 18'9" 11 $4830.00 $5793.00 $6003.00
GR-2200-10 10' 22'6" 12 $5355.00 $6405.00 $6634.50
GR-2600-10 10' 26'3" 13 $5805.00 $6943.50 $7191.00
GR-3000-10 10' 30' 14 $6322.50 $7548.00 $7815.75
GR-3300-10 10' 33'9" 15 $6847.50 $8161.50 $8448.00
GR-3700-10 10' 37' 16 $7290.00 $8691.00 $8997.00
All pricing in CAN Dollars

OR Get a 5% Discount by sending a Cashier's /
Certified Cheque

*Standard 91" Back-Wall Height



General Information (click)

How to Measure (click)

Pricing (click)

Colours (click)

Frame Details  (click)

Extruded aluminum framing in two colors
Pre-assembled and pre-screened framing
Precision stamped frame corners

14 oz heavy duty heat sealed vinyl top

Built in roof tensioning system

Optional Clear Mylar window system




General Information

  • An extended awning with Roof Rafter System and Screen Panel System to give you the best of the outdoors

  • Designed for trailer use.

  • Remove vinyl top easily for winter storage. - Not recommended for a snow load.

  • U - channel deck attach system allows removal of screens easily, if required by park management.

  • Back wall height is set at 91 specifically for trailers -  with a drop to 75 at the front.

  • The panels that would typically attach to the house wall have been shimmed with a foam backed vertical support, eliminating the need to screw the unit into the trailer sides.

  • Built-in flexibility for movement of deck and trailer - will not put stress on the screened room, nor the trailer

  • Horizontal mounting rail may be put on the trailer in the same place as the old awning rail. No need for additional holes in the trailer wall.

  • Complete with Heavy Duty Vinyl top, gable ends, mounting rail, roof rafter system, adjustable leg supports.

  • The support bar on the inside of the screen panels is 1/3 from the bottom on all panels. This means that you have a clear line of sight when seated.

  • Roof tensioning system is built into the end of the roof rafters - accessed from within the overhang using a large thumb nut for ease of operation.

  • The combination of roof overhang, roof tensioning system and roof pitch means that water puddles are eliminated.

  • All panels are bolted together. No silly cables or plastic pieces. The room MUST be screwed to a deck or patio. This is a very high quality, long lasting aluminum framed room that is easily assembled in a few hours.

  • The triple ply, heat sealed (welded joints), 14 ounce soft vinyl roof is made to last!

  • Frame is 1 1/4"  x 3/4" aluminum with baked on enamel finish - in white or taupe.

  • Vinyl Top Color Choices - Hunter Green, Dark Blue, Gray, Taupe, Burgundy, Terra Cotta, or White

  • Privacy panels / wind breaker panels are available. Simply snap them in behind the screen. Designed to extend the seasons. See Options Page


  • SPECIAL OPTION: You can design your screen room to be any combination of enclosed screen room with open canopy (on right or left hand side). Please call us for pricing on the one you would like to build!


  • Designed for easy setup on the trailer deck

  • Attaches to your home, cottage or trailer wall

  • Some minor customization available

  • Top easily slides off the front for winter storage

  • Smooth Rolling Sliding doors standard - specialized top rail roller system allows for a strong, easy sliding door.

  • 1" galvanized steel roof rafters

  • Easy to assemble in 4 - 6 hours


  • Full one year warranty.


  • Prices in ($) CAN for Delivery Included to most major centres

Vinyl Top Colours


Choice of roof colours...


Brochure


Frame Details


  1. Frame measures 1-1/8" wide x 3/4" extruded aluminum with baked on enamel finish - in white or taupe.

  2. Extrusion is 1/8" thick

  3. 44" top rolling smooth sliding door is standard

  4. Full one year warranty.

  5. The triple ply, heat sealed (welded joints), 14 ounce soft vinyl roof is made to last!

  6. Vinyl Color Choices -
    Green, Blue, Gray, Taupe, Burgundy, Terra Cotta or White





We carry over 100 different combinations of gazebos in sizes and colors designed to fit most decks and patios.
If you don't see it here, call us, we will be pleased to advise and assist.



**COMPARE!**  Easy reference comparison

Check out our Free Standing Screen Enclosure Comparison Page!


Print Stand Alone Screen Room Comparison Page

.

**COMPARE!**  Easy reference comparison
Check out our Wall Attached Screen Enclosure Comparison Page!


Print Wall Attached
Comparison Page





Call: 1-800-922-4760 and talk with our experts. We provide personal service and advice on your selection. Please call or email us with your questions and installation advice and tips. We are here to serve. *Delivery Included within Canada. (*Some remote and island ferry access areas subject to a surcharge)

Obtaining necessary permits is the sole responsibility of the purchaser. Customers agree to hold Patio Concepts Inc. and the manufacturer free of any liability for improper installation, maintenance and repair.

**Please note that most items are custom made and are not returnable**
Current delivery is in the 3-4 week range.

To ensure customer satisfaction and correct order details, we 'purposely' do not maintain a shopping cart site.
Call Toll Free 1.800.922.4760 to place your order!
