Jardin Trailer Picture Gallery Page

Wall Attached Screen Rooms

Do It Yourself Screen Room s

Veranda Jardin Screen Rooms Do it Yourself Screened Enclosures
and Patio Rooms

We give you the advantage of an additional room to your house, without the high cost of construction. These types of enclosures are not generally considered a permanent room, and so you may not need building permits or contractors and you should not have an increase in property taxes.

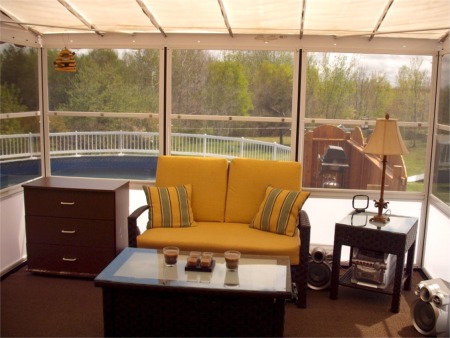

This picture is from the inside of one of our customer installations.
  1. They have a white roof
  2. White 1/3 size privacy panels on the bottom of each screen section
  3. Clear (hinged in the middle) 2/3 size Mylar window panels in the top of each screen section. (see picture below)



Pictured on the right are the 2/3 size Mylar window panels. For the purpose of the picture they are on their 'side.' Note they are hinged in the middle. The picture shows the clear and the smoked Mylar.

The bottom 1/3 size panel can be either the Mylar or any color vinyl - just like the roof top.

The picture on the left is an excellent shot of the PVC rails that hold the screen walls to your deck or patio.

Also take note of the pressure pins that hold the privacy panels in the screen frame - flush with the inside face!


The frame is an extruded aluminum construction. The aluminum is 1/8" thick and the frame measures 1-1/8" x 3/4"


Prepared for winter!!! Though not always recommended (the unit is DESIGNED to be
taken down for the winter) you could leave the skeleton up for the winter.

That said, common sense observes that this may leave the unit open to damage from
falling snow & ice from trees, or the roof line.


GP1100-11 (11'3" x 11'3")

GP1800-7 (7'6" x 18'9")

GP1100-11 (11'3" x 11'3")

GP1500-7 (7'6" x 15')
Click on the pictures above for a larger view...

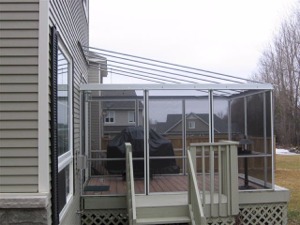

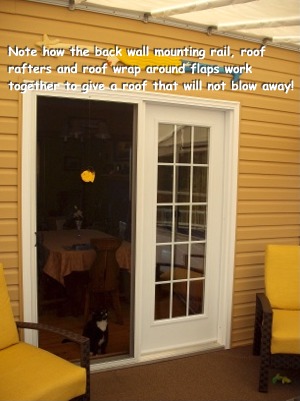

A few pic's of the attachment portions of the unit to the house wall...

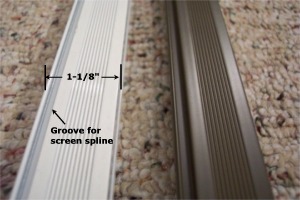

Frame is 1-1/8" wide x 3/4" extruded aluminum with baked on enamel finish - with four colour options: Standard white or taupe, and premium black or antique brass (+ $35 per panel) . Extrusion is 1/8" thick

Roof

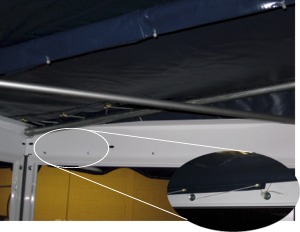

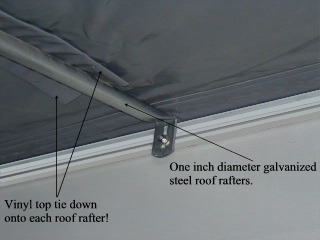

Roof tightening system is built into the end of each galvanized steel roof rafter within the 5 1/2" overhang. The "nut & bolt" type operation allows for a simple finger operation and does not require a wrench or pliers to operate.

Additionally, the extruded aluminum bolt down brackets hold the front header rail on securely along the full length of the unit.

Both the roof and the gable sides of the roof are
securely fastened to the side header rail by way of a grommet and lace up system. Easy to remove and easy to re-do!

The room MUST be screwed to a deck or patio. PVC rails are supplied to secure the extruded aluminum frame to the deck or patio. The aluminum extrusion
is secured in place with self tapping metal screws. The PVC rail is then secured down to the deck or
patio in a traditional manner.
This picture is a view of the bottom PVC
rail in which the door moves.

The the picture below shows the top mounted rollers. This design allows for large smoothly operating nylon rollers in a die cast setting
held inside a PVC rail. Long lasting quality
in a smooth sliding door system.

Warranty
Veranda Jardin Gazebo's and Screen Rooms are guaranteed free from all defects in workmanship and materials for a period of 1 (one) year following shipment of the unit from the factory. Due to the nature of the fiberglass screening used in these items, Veranda Jardin cannot guarantee the screen itself after the box has been opened. This warranty is void in the event the unit has been subject to abuse or incorrect assembly. Veranda Jardin is not responsible for damage caused by weather.

Call: 1-800-922-4760 and talk with our experts. We provide personal service and advice on your selection. Please call or email us with your questions and installation advice and tips. We are here to serve. *Delivery Included within Canada. (*Some remote and island ferry access areas subject to a surcharge)

Obtaining necessary permits is the sole responsibility of the purchaser. Customers agree to hold Patio Concepts Inc. and the manufacturer free of any liability for improper installation, maintenance and repair.

**Please note that some items are custom made and are not returnable**
Current delivery is in the 3-4 week range.

To ensure customer satisfaction and correct order details, we 'purposely' do not maintain a shopping cart site.
Call Toll Free 1.800.922.4760 to place your order!
