Jardin "All Season" Screen Room

Free-Standing Patio Rooms
Trailer Screen Room

Rectangular Style Deck Enclosure Kits

With a heavy duty, waterproof, heat-sealed vinyl top, and one inch thick "Galvalum" roof structure, this is the most talked about unit in the Jardin line up! Made in Quebec to take on Quebec winters, you can confidently leave up this screen enclosure all year round.

To protect yourself from West Nile Virus add a three sided screen room to your deck or patio and start enjoying the outdoors, without the mosquito, as well as with protection from the sun, wind and rain.

How To Measure

  • Extruded aluminum framing in two colors
  • Pre-assembled and pre-screened framing
  • Precision stamped frame corners
  • 14 oz heavy duty heat sealed vinyl top
  • Built in roof tensioning system
  • Optional Clear Mylar window system
  • Galvalum roof rafter system

Read through the details and pricing, given below, of this high quality room. Then click on this link (click) for the picture page which shows you, by means of pictures, each aspect of the room you just read about!

Actual Size (with 44" wide x  79" high frames)
Model # Size / Shape Number of
Panels
(44" x 79")
Unit Only Unit with Mylar Windows
(top & bottom)
Unit with Top Mylar Windows
& bottom Vinyl Panels
GZ 1111 11'3" x 11'3" 12 $3488.70 $4505.15 $4727.00
GZ 1115 11'3" x 15' 14 $4148.45 $5333.10 $5591.20
GZ 1118 11'3" x 18'9" 16 $4812.55 $6165.40 $6461.20
GZ 1122 11'3" x 22'6" 18 $5466.50 $6990.45 $7322.50

General Information

  • Ideal for hot tubs. These panels are 79" high and a complete sliding screen door system is also part of this package. It comes with either white or taupe frames and a 7 color choices of a triple ply vinyl top.
  • The roof rafter system is made with 1" diameter Galvalume extrusions for rustproof strength and durability.
  • The roof system has been specially designed with a 25 degree pitch (boasting a 111" peak height). This allows for a 4 season set up preventing an extreme accumulation of snow on the roof. An interior heat source (such as a hot tub) could make snow on the roof stick to the vinyl so we would always recommend common sense when dealing with snow.
  • 44" sliding door assembly - specialized top rail roller system allows for a strong, easy sliding door.
  • The vinyl top has a patented system of air circulation vents while being 100% waterproof.
  • Roof tensioning system is built into the end of the roof rafters - accessed from within the overhang using a large thumb nut for ease of operation.
  • The combination of roof overhang, roof tensioning system and roof pitch means that water puddles are eliminated.
  • All panels are bolted together. No silly cables or plastic pieces. The room MUST be screwed to a deck or patio. This is a very high quality, long lasting aluminum framed room that is easily assembled in 4-6 hours.
  • The triple ply, heat sealed (welded joints), 14 ounce soft vinyl roof is made to last!
  • Vinyl Top Color Choices - Hunter Green, Dark Blue, Gray, Taupe, Burgundy, Terra Cotta or White
  • Frame is 1-1/8" wide x 3/4" deep x 1/8" thick aluminum with baked on enamel finish - in white or taupe. Total height of each frame is 79".
  • 1" diameter 'galvalum' supporting structure every 44"
  • Privacy panels and clear Mylar window panels are an option with this unit. Simply snap them in behind the screen.
  • The kit includes complete brackets and moldings to secure your unit to the deck or patio.
  • Each screen panel is 44" wide and 79" high for easy walk through
  • The support bar on the inside of the screen panels is 1/3 from the bottom on all panels. This means that you have a clear line of sight when seated.
  • Designed for easy setup on any deck or patio area
  • Smooth Rolling Sliding doors standard - specialized top rail roller system allows for a strong, easy sliding door.
  • 1" diameter galvalum roof rafters - in a roof truss design for strength and durability
  • Easy to assemble in 4 - 6 hours
  • Full one year warranty.
  • Prices in ($) CAN for Delivery Included to most major centres

Vinyl Top Colours

Frame Details

Trailer Screen Colours
Trailer Screen Colours

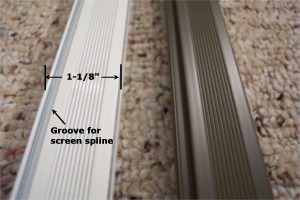

  1. Frame measures 1-1/8" wide x 3/4" extruded aluminum with baked on enamel finish - in white or taupe.
  2. Extrusion is 1/8" thick
  3. 44" top rolling smooth sliding door is standard
  4. Full one year warranty.
  5. The triple ply, heat sealed (welded joints), 14 ounce soft vinyl roof is made to last!
  6. Vinyl Color Choices - Green, Blue, Gray, Taupe, Burgundy, Terra Cotta or White
